Technical characteristics

Frame Range

H90/132

Power Range

0.75~7.5kW

Rated Voltage

380V（Special voltage customization）

Rated Frequency

50Hz（Special frequency customization）

Poles

2、4

Protection Degree

IP54

Cooling ModeIC410Insulation ClassF
Operation ModeS1Installation ModeB5
Wiring ModeY/?

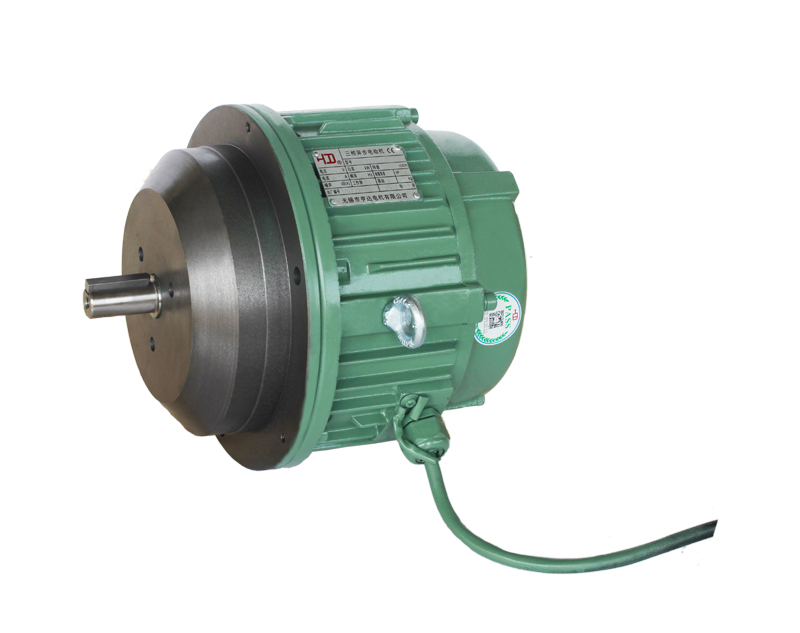

YCF series three-phase asynchronous motor for textile fan

This series of motors are specially designed for fan drive of textile machinery. They have the advantages of low temperature rise, small volume, low noise, strong dust-proof ability and so on. Suitable for dusty, short fiber and high temperature and humidity environment. The motor is mainly used for supporting fans of high-speed drawing frame and spinning frame, and can also be used in similar working environment.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
    • ModelRated PowerCurrentPower FactorEfficiencySpeedLocked Torque /
    Rated Current    		Locked Torque /
    Rated Torque    		Max. Torque /
    Rated Torque
    kWAcosΦηr/minIst/INTst/TNTM/TN
    YCF90S01-20.751.70.85792840722.3
    YCF90S02-21.12.50.87822840722.3
    YCF90S1-21.53.40.88822840722.3
    YCF90S2-21.83.90.88822840722.3
    YCF90L-22.24.60.88822840722.3
    YCF132S01-22.24.70.85882890722.3
    YCF132S02-236.40.85882890722.3
    YCF132S03-248.10.85882890722.3
    YCF132L1-25.510.50.86882910722.3
    YCF132L2-2611.40.86882910722.3
    YCF132L3-27.5150.86882910722.3
